KRYPTONITE STAGE 3 LEVELING KIT WITH FOX SHOCKS 1/2 TON 6 LUG 2014-2018 (KRUCA13)

KRYPTONITE STAGE 3 LEVELING KIT WITH FOX SHOCKS 1/2 TON 6 LUG 2014-2018 (KRUCA13)

Regular price $1,899.99 USD
Regular price Sale price $1,899.99 USD
Sale Sold out

Fits; 2014-2018 Chevrolet / GMC 1500 2WD/4WD Trucks and SUVs. Works with trucks originally equipped with aluminum or stamped steel control arms only!

See Important Fitment Information Below!

Part# KR13STAGE3FOX

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

This Leveling kit includes everything you need to lift the front of your truck 2" and provides a great ride. Kit includes Fox Performance Series 2.0 Coilover Shocks pre-set at 2" above stock ride height. Plus Fox Performance Shocks for the rear of your truck. To allow for suspension travel we have included Kryptonite Upper Control arms. These arms are laser cut and welded into an extremely strong boxed design. Made with pride here in small town USA and backed with a lifetime warranty.



*Our Control Arms will NOT fit with most OE Wheels on the 6 Lug Trucks. Please double check clearances before driving as contact and damage may result.

*MagneRide will require custom bracket modification / fabrication. Not included.

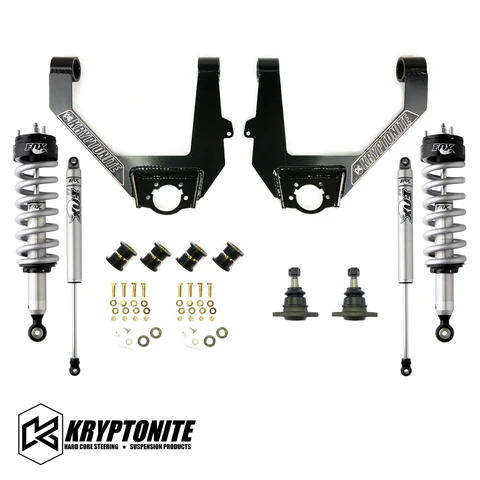

Kit Includes everything needed for installation;
  • 1 x Kryptonite Upper Control Arm Pair
  • 4 x Control arm sleeves
  • 8 x Control arm Bushings
  • 2 x Kryptonite Bolt on Upper Ball Joints
  • 1 x Hardware package
  • 2 x Fox Leveling Coilovers Front 2" Part# KRS018
  • 2 x Fox Shocks Part# KRS660

This leveling kit gives 2”of lift and gives clearance to add up to 33" tire.

This Kryptonite Leveling Kit is compatible with trucks originally equipped with Aluminum or Two Piece Stamped Steel Control Arms mounted in the factory location ONLY!




Fox bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predictable ride quality capable of handling the roughest road conditions.

(Kryptonite No Fine Print Lifetime warranty)-Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.

Your Kryptonite products must be purchased from an authorized dealer, and must complete warranty registration within 90 days of purchase. Complete Warranty details can be found here.
